GT40 Style Switch Set with Billet Aluminum Switch Panel
GT40 Style Switch Set with Billet Aluminum Switch Panel
Please Note: This product is no longer available through DVF Customs directly. Please visit our partner, Scout or Die, to purchase this product. Thank you!
Product Details:

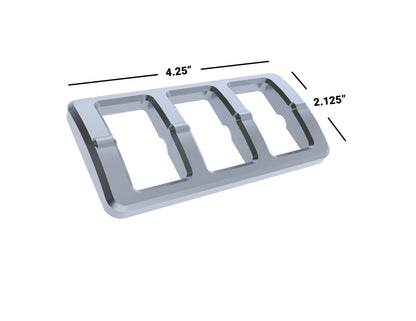

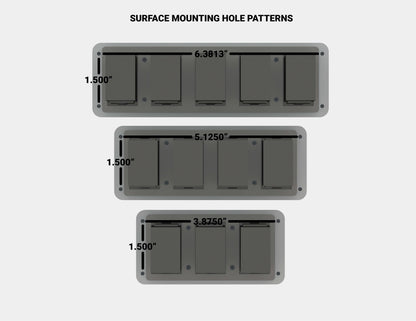

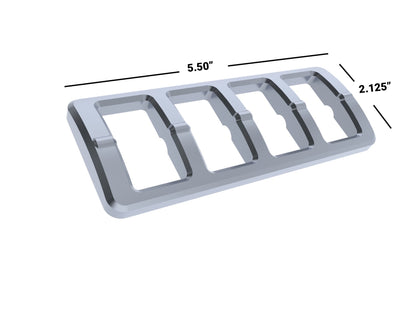

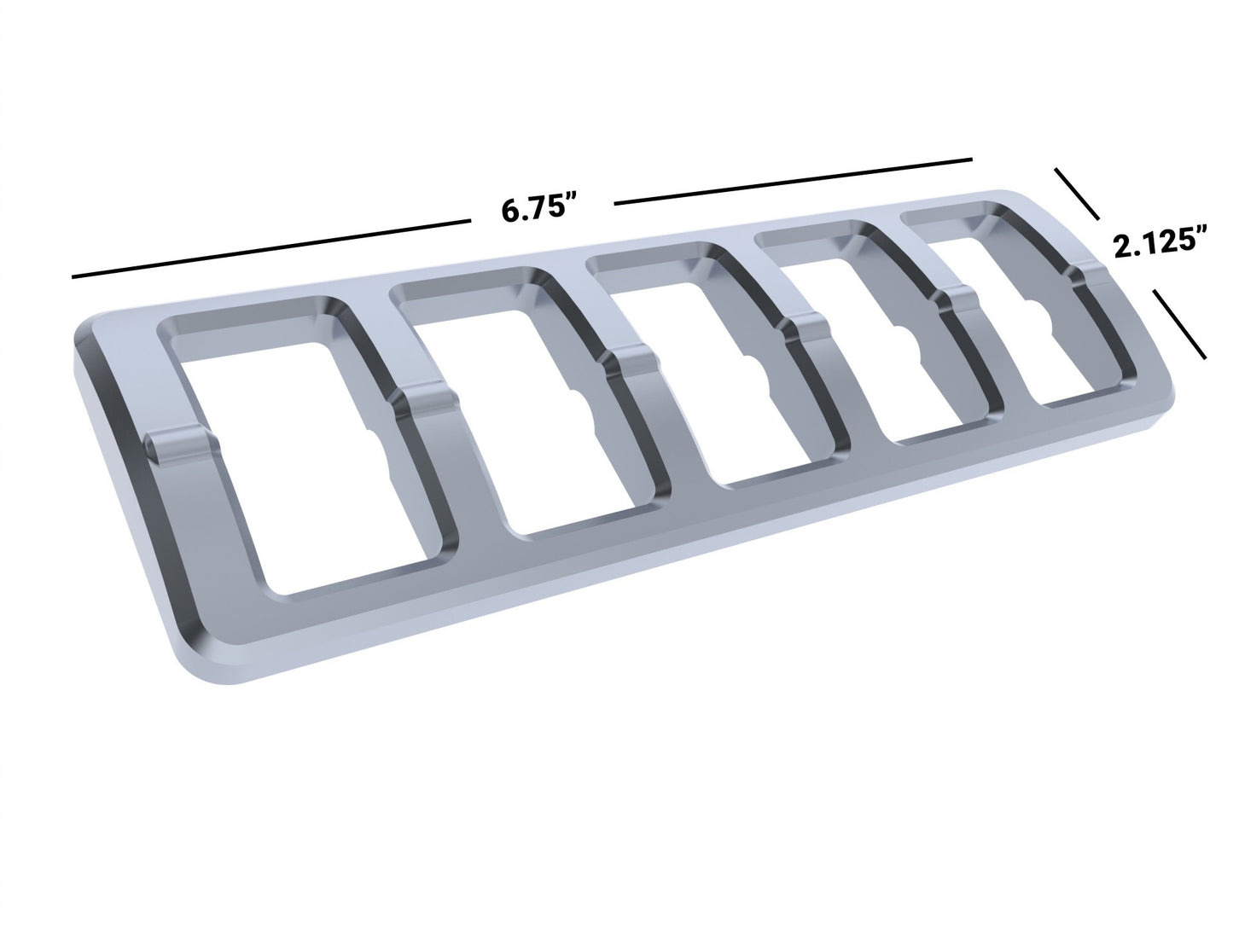

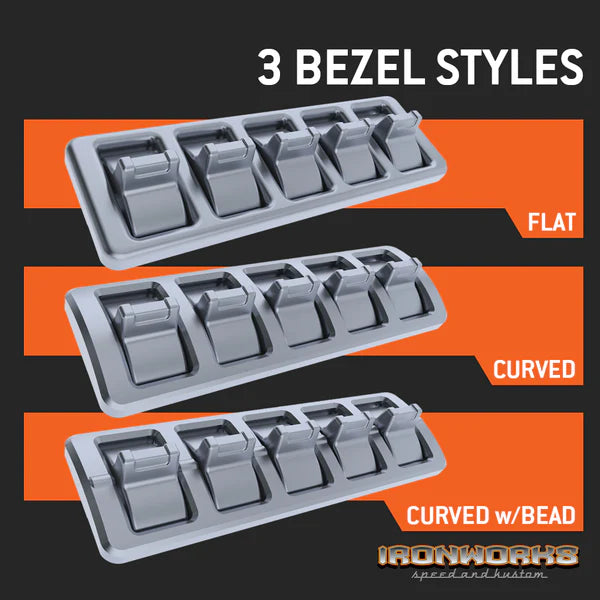

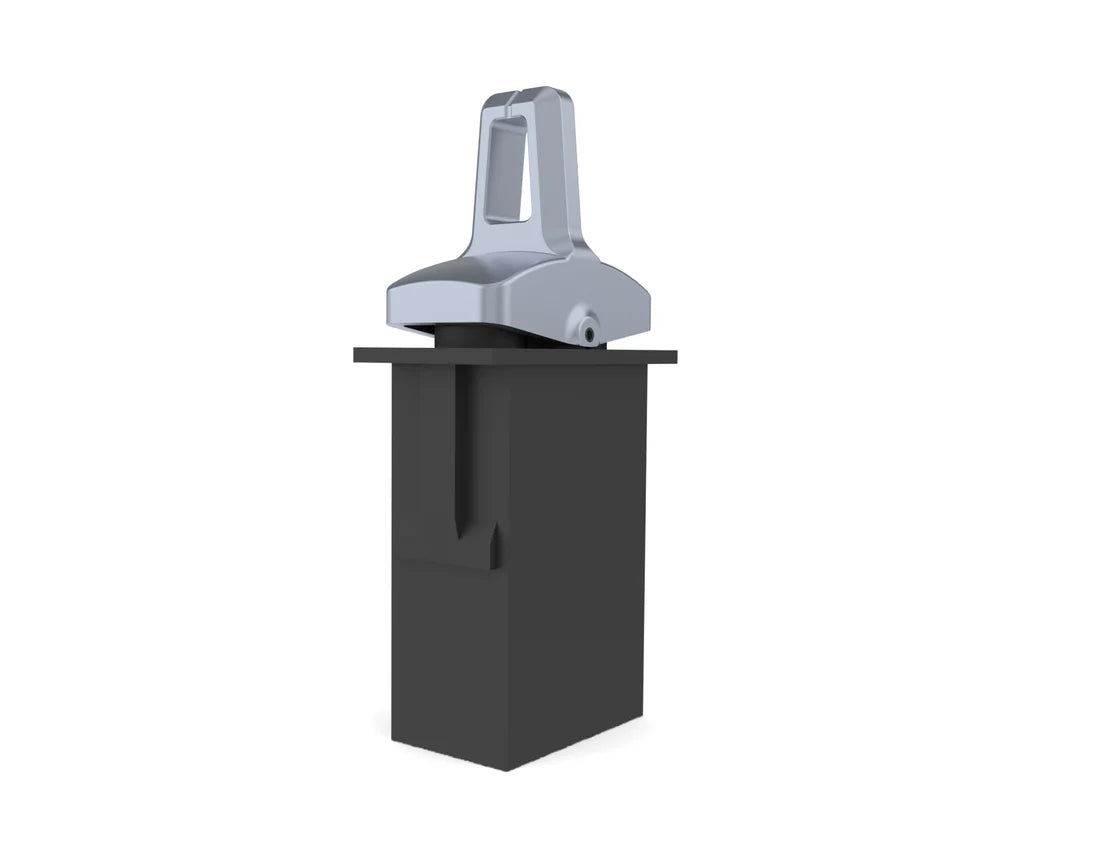

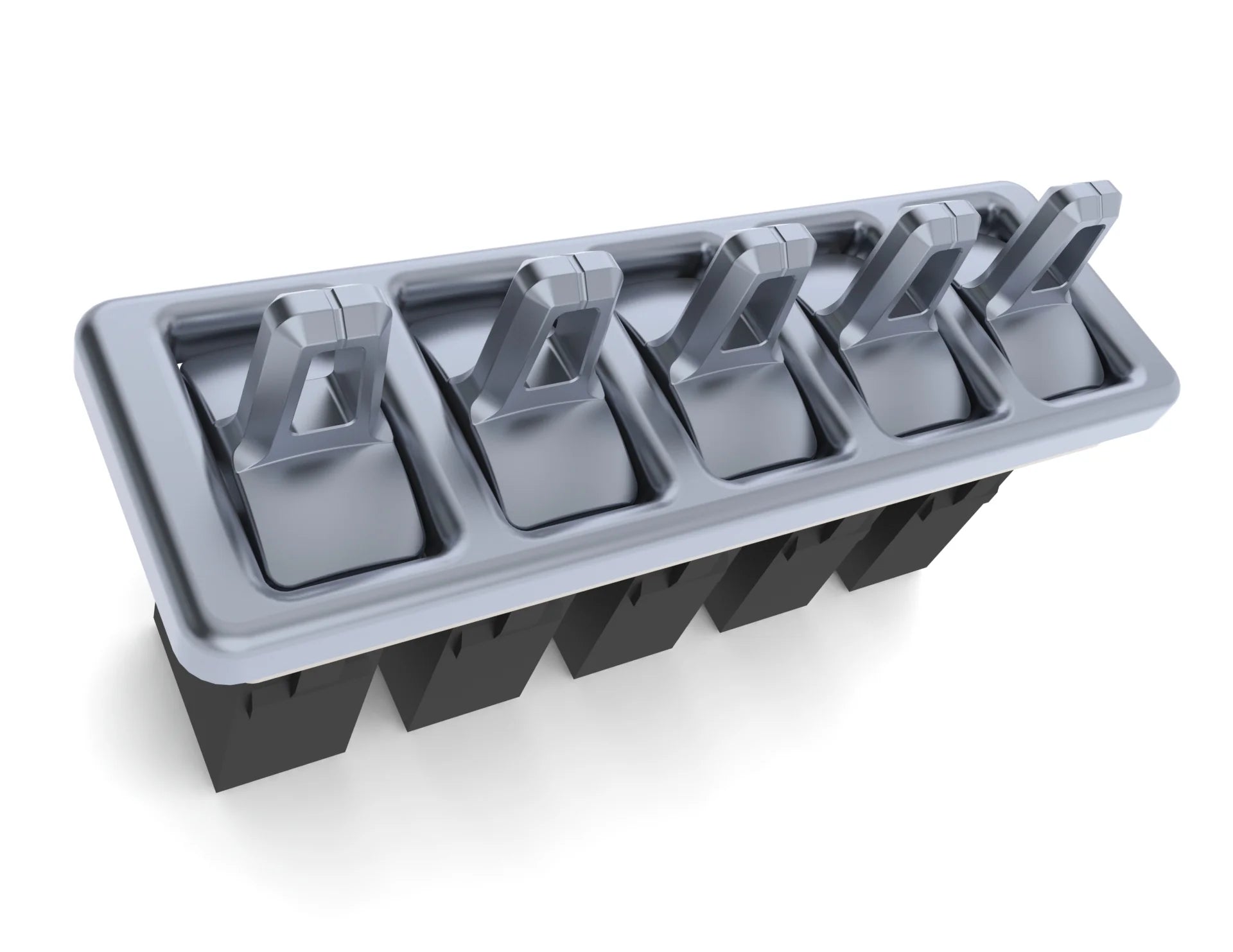

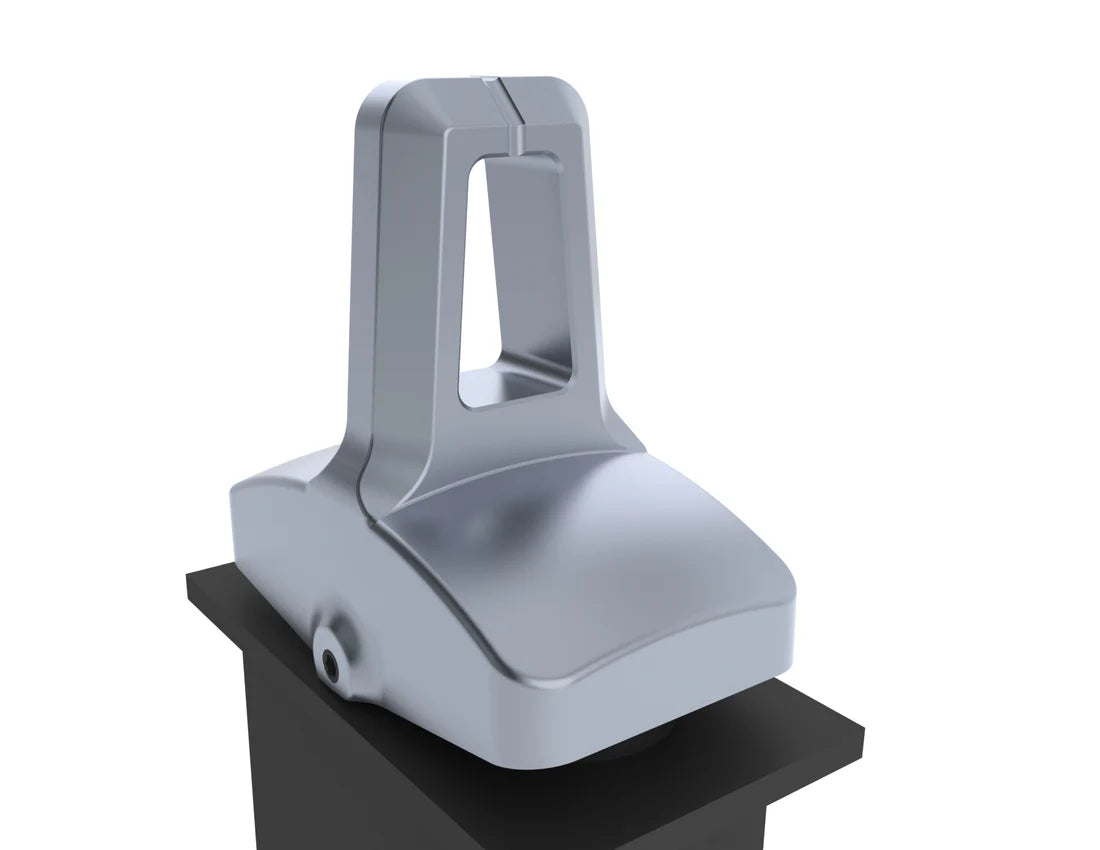

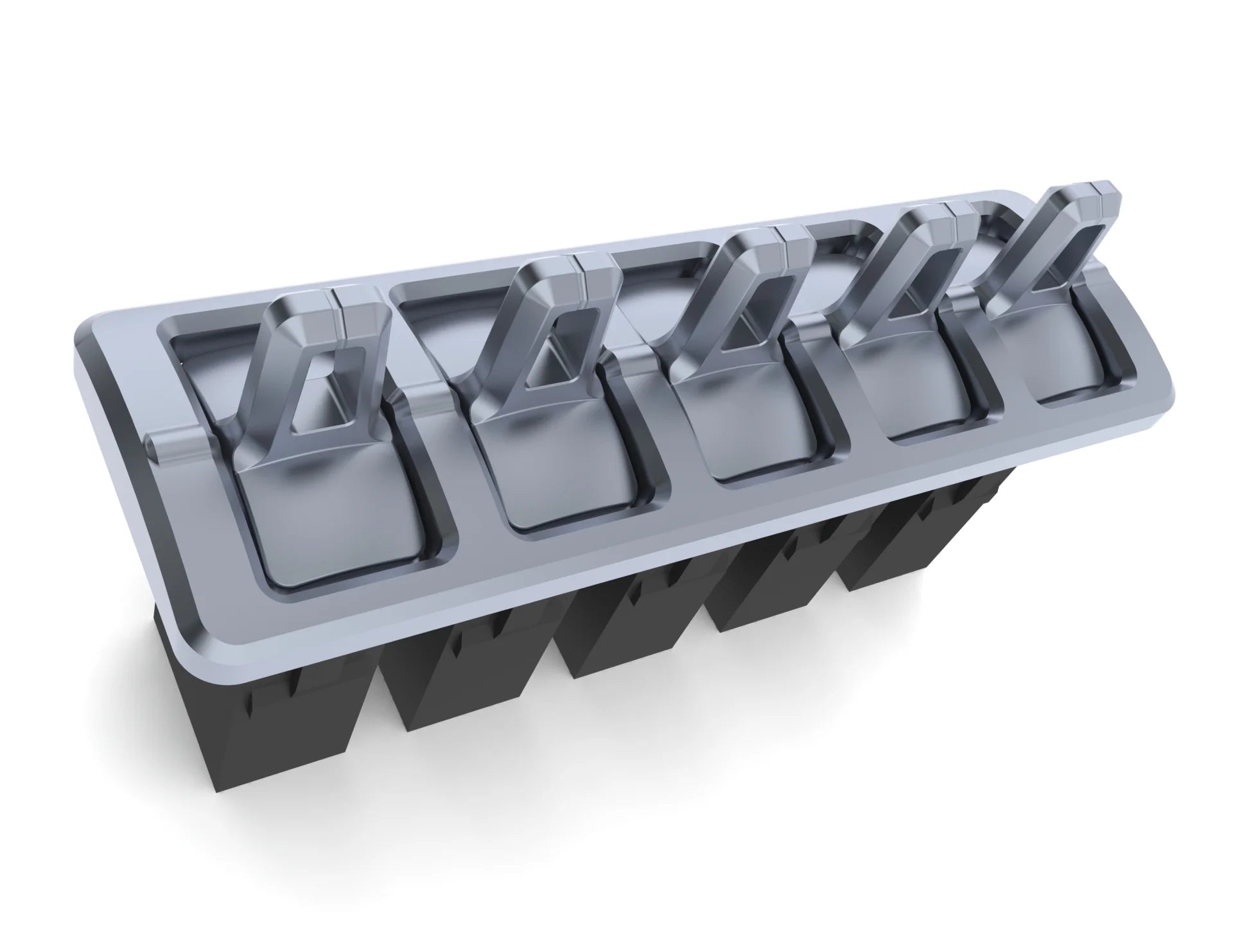

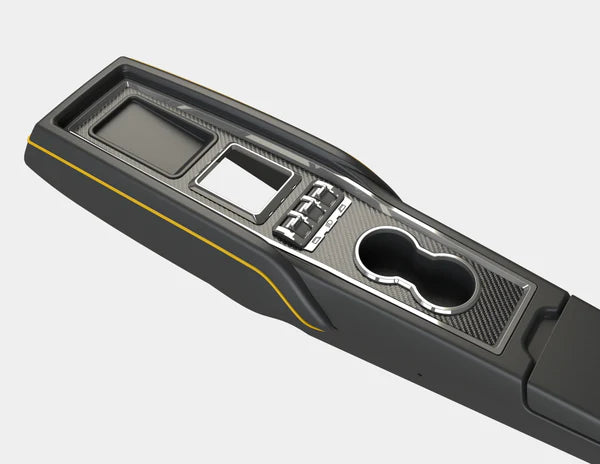

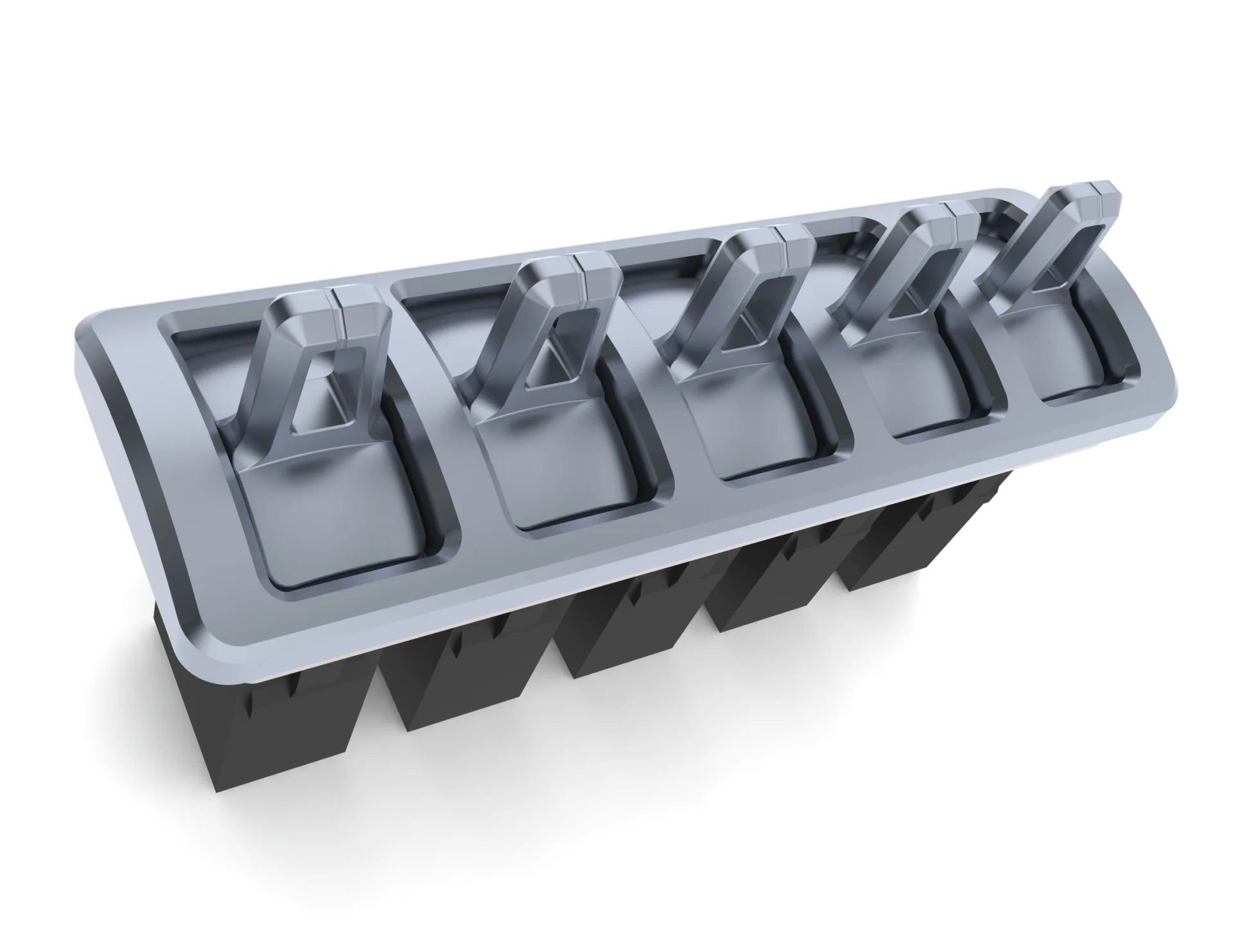

The GT40-style switches blend simplicity with performance. Their low-profile design ensures a seamless integration into your console or dashboard. Proudly made in the USA, the aluminum switch top gives you the option to finish them in —including chrome, polished, anodized, powder-coated, cerakoted, painted, raw, blasted, or brushed—to match your personal style.Available Functions:
-

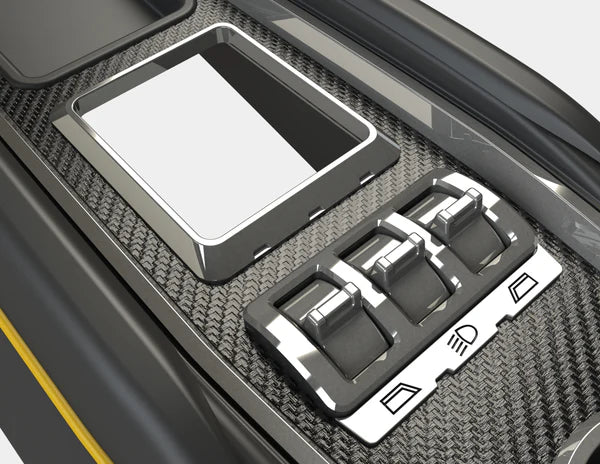

Power Window: Ensure smooth operation with momentary-on/off functionality.
-
Headlight: Easily switch between off, low, and high beams.
-
Starter Switch: Dependable momentary-on switch for engine starts.
-
Universal: Simple and effective off-on control for various applications.
Power window switch - Pin Out
Pin 1 - Jumper wire also connected to Pin 6
Pin 2 - To ground
Pin 3 - Negative side of Power window motor
Pin 4 - Jumper wire also connected to Pin 3
Pin 5 - Fused Power circuit
Pin 6 - Positive side of Power window motor
Pin 7 - LED light - to ground
Pin 8 - LED light - from switched power
If you look on the side of the switch you will see the small number for each pin on the switch.
Headlight switch - Pin Out
Pin 2 - Fused Power for Parking lights
Pin 3 - To Parking lights or Parking light relay
Pin 5 - Fused Power for headlights
Pin 6 - To Headlights or Headlight relay
Pin 7 - LED light - to ground
Pin 8 - LED light - from switched power
If you look on the side of the switch you will see the small number for each pin on the switch.
On-Off switch - Pin Out
Pin 2 - To part for switched power
Pin 3 - Fused power for switched
Pin 7 - LED Light - to ground
Pin 8 - LED Light - from switched power
If you look on the side of the switch you will see the small number for each pin on the switch.
