OE1 Style Switch Set with Bezel
OE1 Style Switch Set with Bezel
Please Note: This product is no longer available through DVF Customs directly. Please visit our partner, Scout or Die, to purchase this product. Thank you!
Product Details:

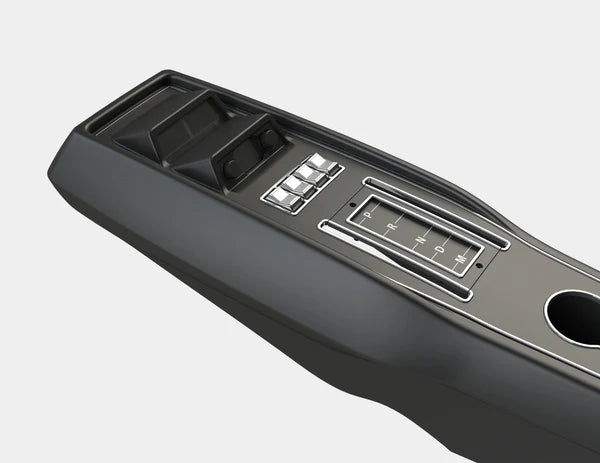

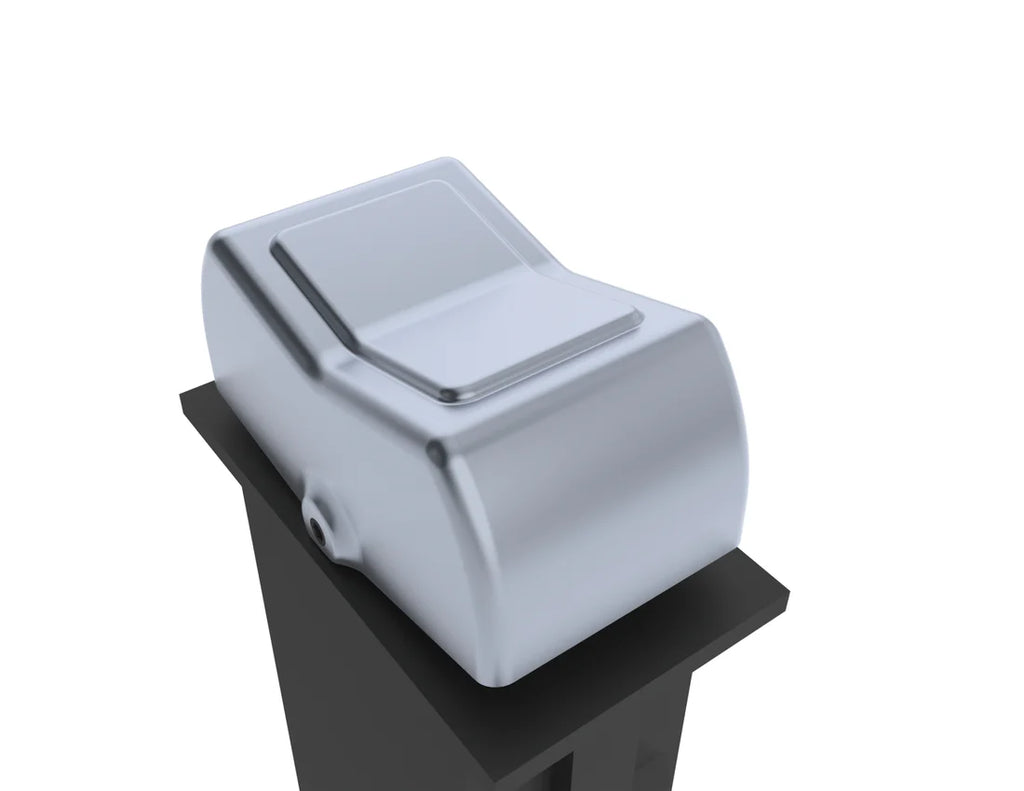

Engineered for a seamless factory-fit appearance, our OE-style switches combine outstanding performance with a timeless aesthetic. Proudly made in the USA, these switches boast aluminum tops available to be covered in a variety of finishes—from chrome and polished to anodized, powder-coated, cerakoted, painted, raw, blasted, or brushed—to perfectly complement any project.

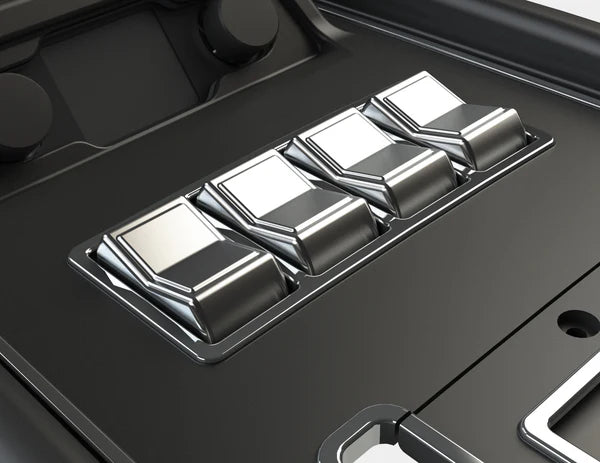

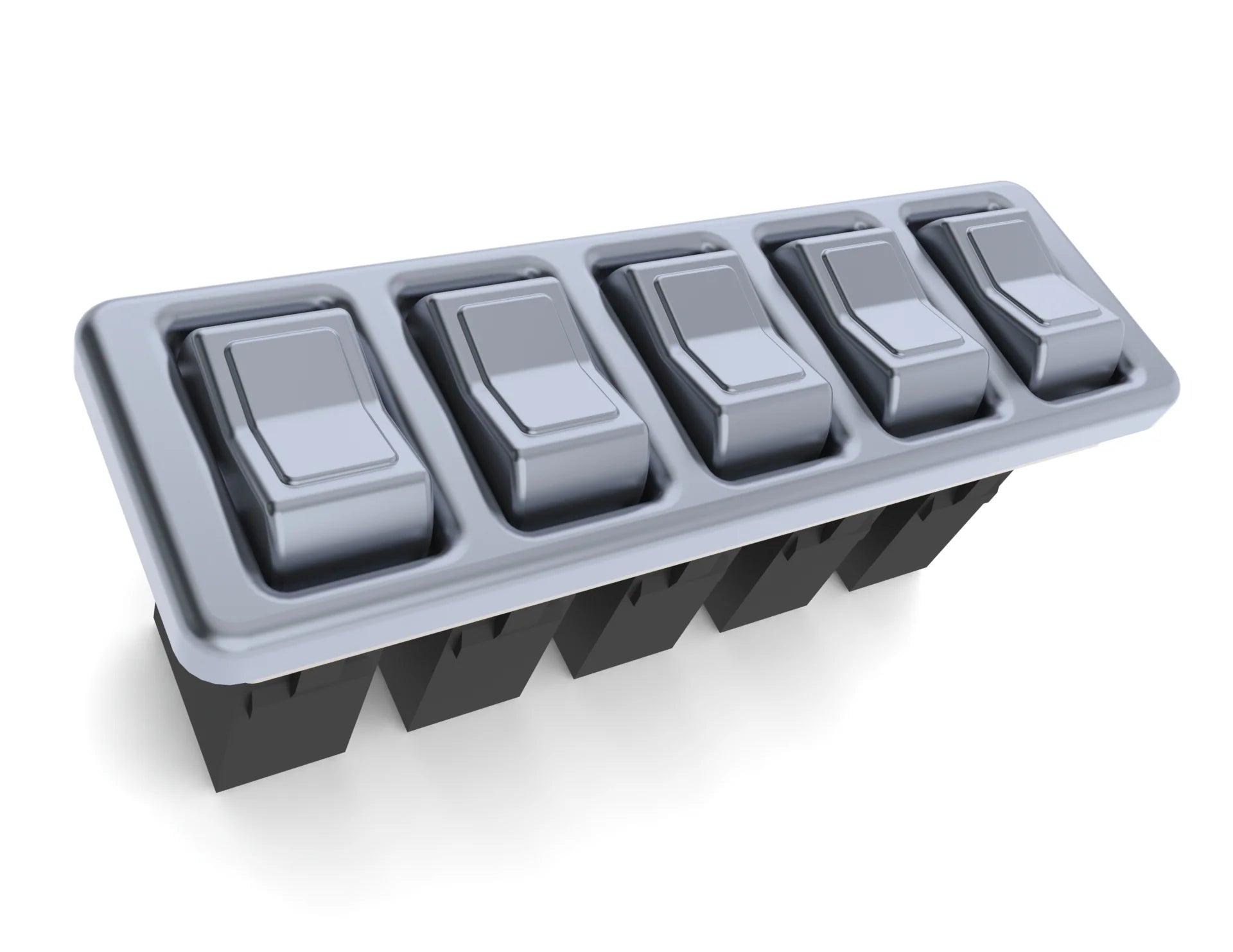

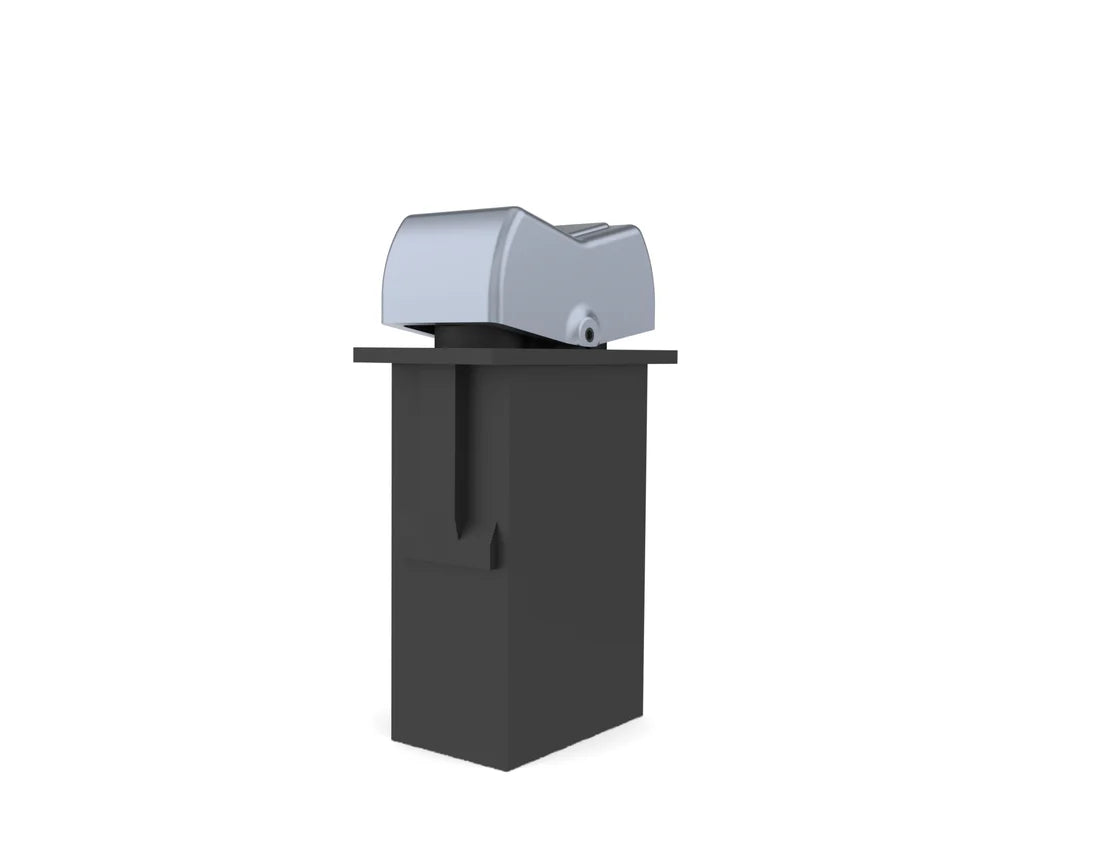

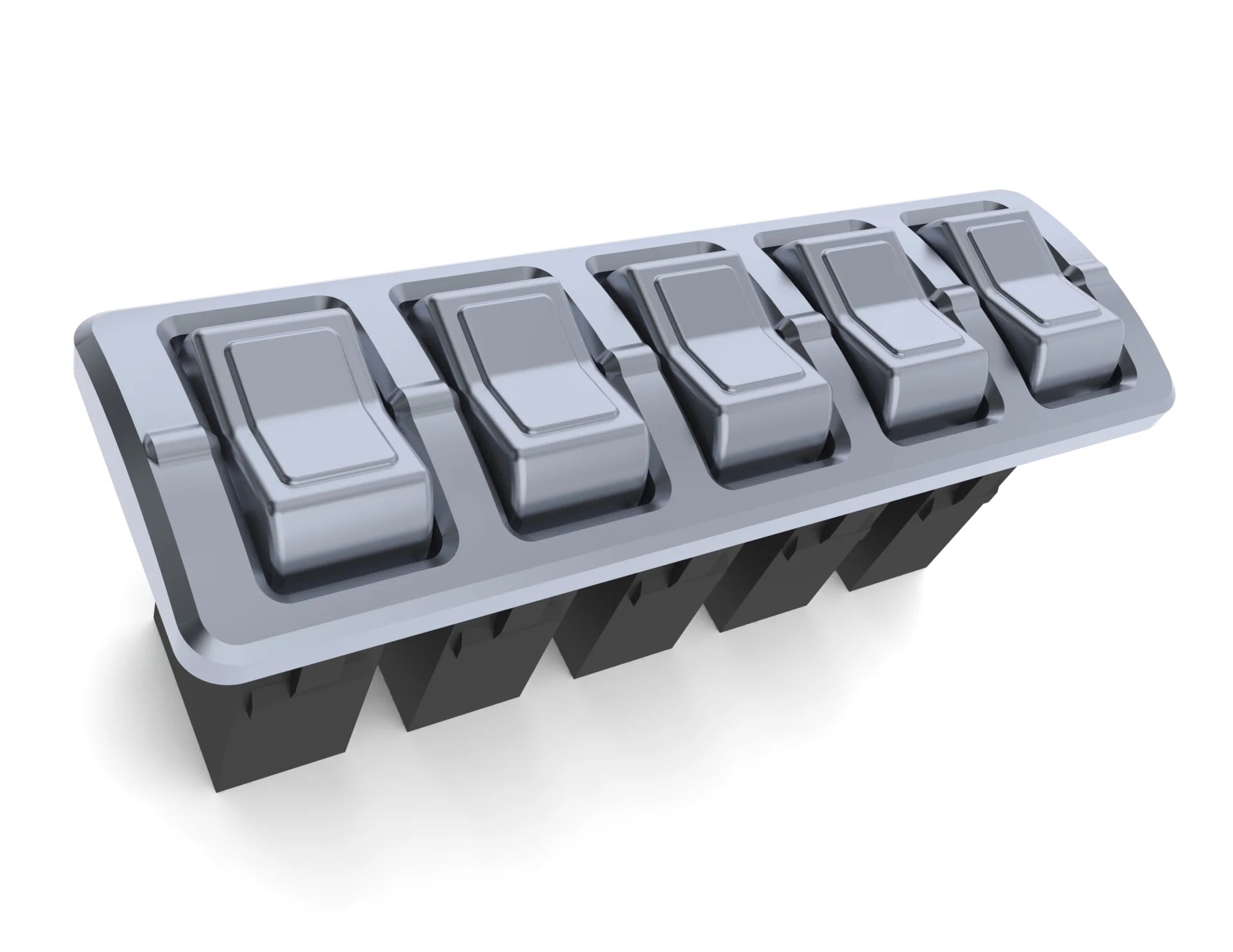

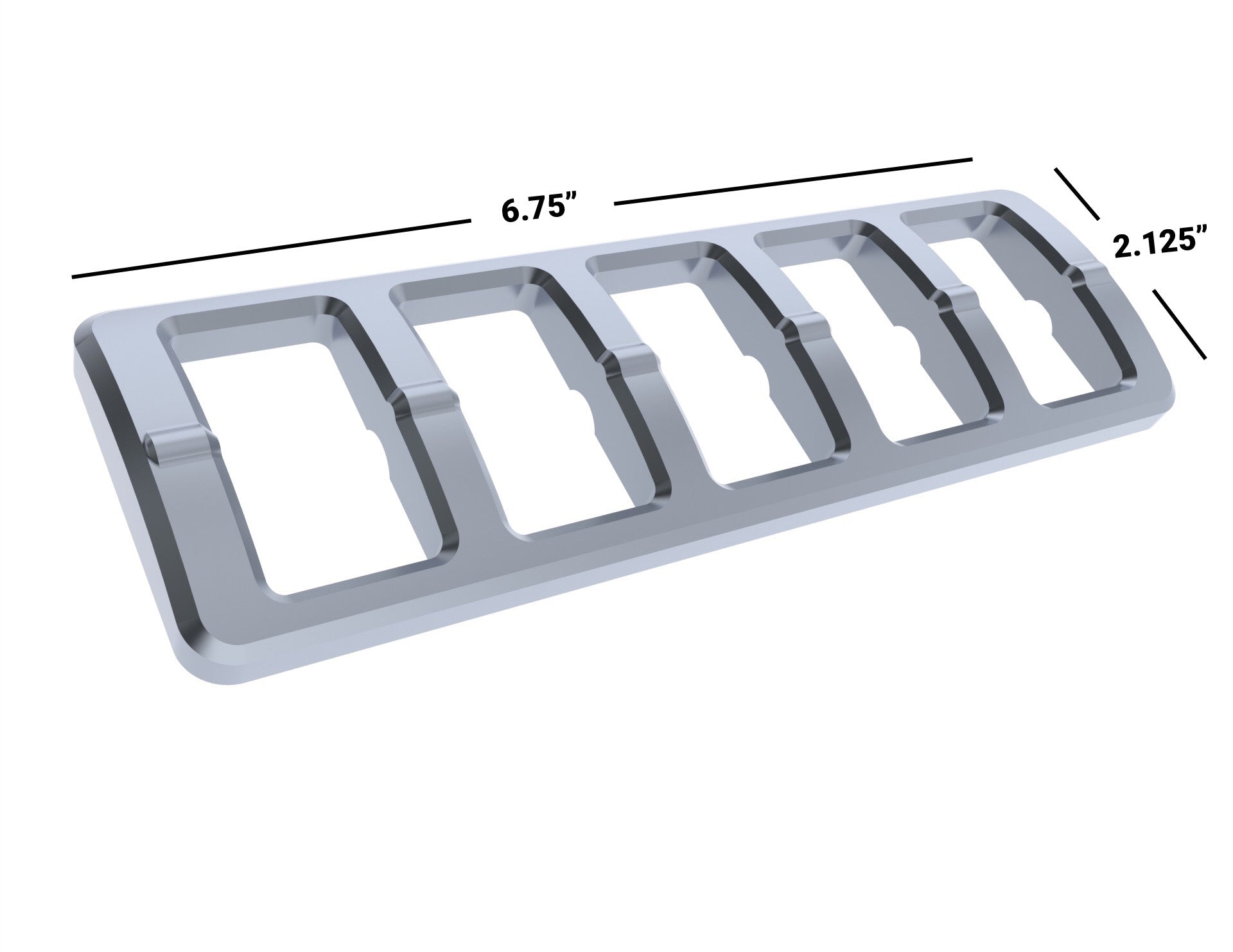

Additionally, the carefully crafted bezel design enables a more compact assembly and a pristine installation.
Available Functions:
-
Power Window: Ensure smooth operation with momentary-on/off functionality.
-
Headlight: Easily switch between off, low, and high beams.
-
Starter Switch: Dependable momentary-on switch for engine starts.
-
Universal: Simple and effective off-on control for various applications.
Power window switch - Pin Out
Pin 1 - Jumper wire also connected to Pin 6
Pin 2 - To ground
Pin 3 - Negative side of Power window motor
Pin 4 - Jumper wire also connected to Pin 3
Pin 5 - Fused Power circuit
Pin 6 - Positive side of Power window motor
Pin 7 - LED light - to ground
Pin 8 - LED light - from switched power
If you look on the side of the switch you will see the small number for each pin on the switch.
Headlight switch - Pin Out
Pin 2 - Fused Power for Parking lights
Pin 3 - To Parking lights or Parking light relay
Pin 5 - Fused Power for headlights
Pin 6 - To Headlights or Headlight relay
Pin 7 - LED light - to ground
Pin 8 - LED light - from switched power
If you look on the side of the switch you will see the small number for each pin on the switch.
On-Off switch - Pin Out
Pin 2 - To part for switched power
Pin 3 - Fused power for switched
Pin 7 - LED Light - to ground
Pin 8 - LED Light - from switched power
If you look on the side of the switch you will see the small number for each pin on the switch.
